KognitiveEdge E S110

EdgePro - Comprehensive Network Management

The ES110 is a highly capable network management appliance, engineered to meet the advanced requirements of various environments, from industrial settings to expansive network infrastructures that require robust connectivity and streamlined remote management. This powerful edge platform stands out for its efficiency in setting up and maintaining complex usage and routing operations. With native support for wireless technology like 5G, Starlink, and all major satellite platforms, ES110 is the cornerstone of successful network deployments.

Datasheet User Manual Quick Start Guide
edgepro-2
networks-edge-logo

WAN and LAN Management System

Reliable WAN and LAN Connectivity with Usage Quotas and Captive Portal

Cloud Management tailored for Multi-User Environment Orchestration

Advanced Security and Multi-path VPN Routing with SASE functionality

Integrated Workflow Compatibility

Specifications

Comprehensive network appliance for secure SD-WAN, remote access, and flexible WAN/LAN connectivity, with integrated captive portal for usage control.

KognitiveEdge ES110

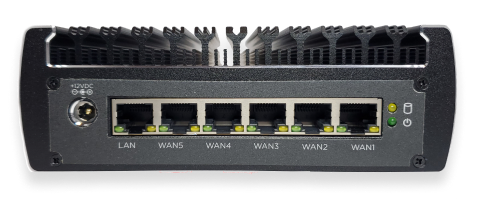

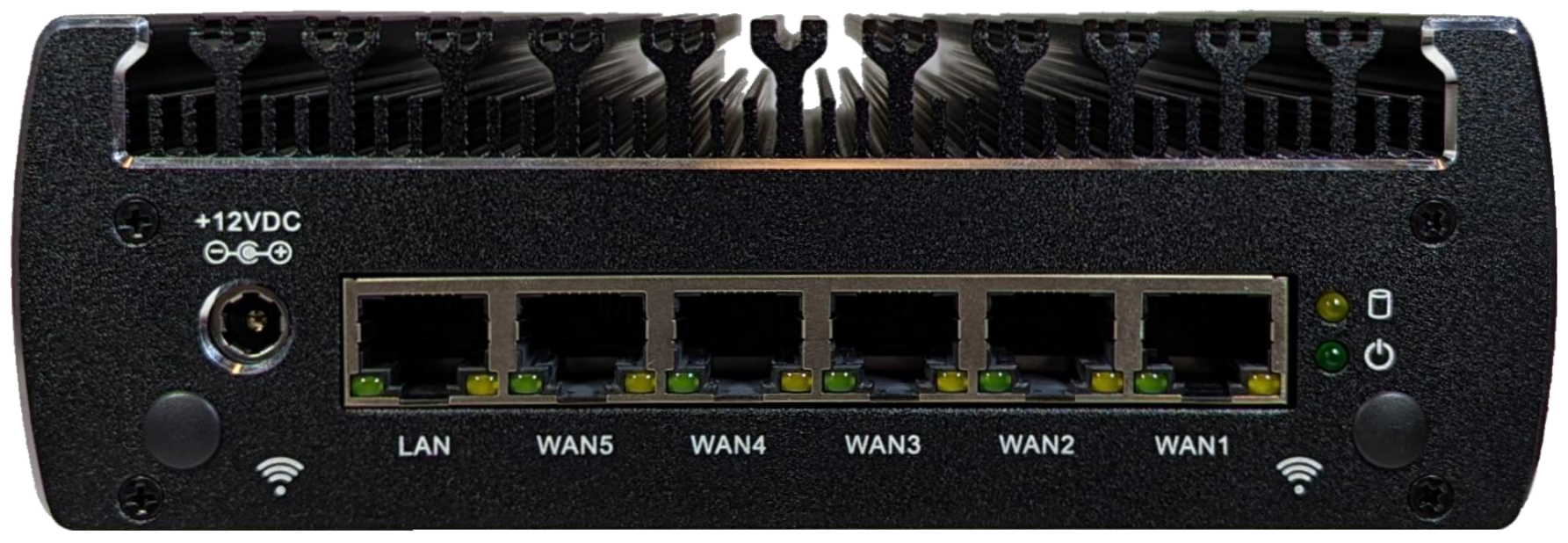

EdgePro - Front View
KognitiveEdge ES110

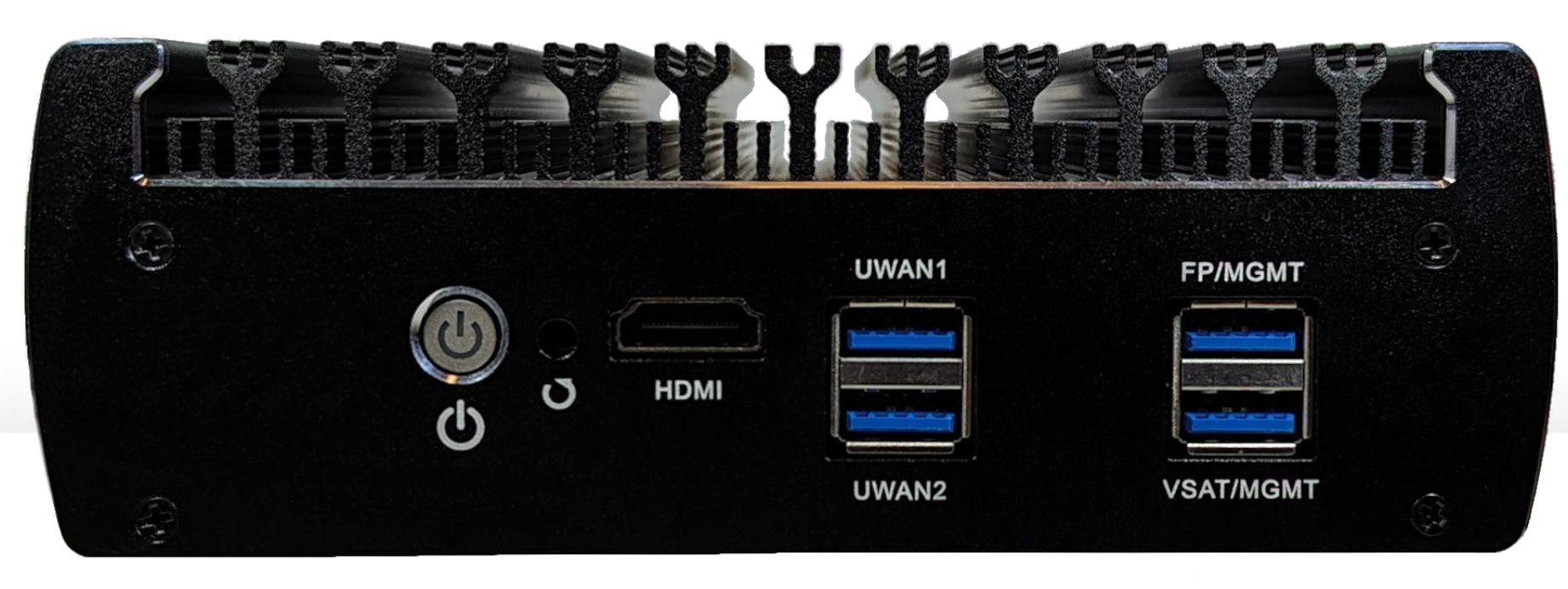

EdgePro - Back View

Overview
Software EdgeOS with Kognitive Cloud
Services Multi-WAN failover, External 5G modem support, Firewall, QoS/QoE Traffic Policies, MPK-VPN, IDS/IPS, Captive Portal, Remote Management, SD-WAN w/ Hub or Node Modes, Point of Presence (POP)
Typical Use Cases Office & Remote Sites, High Reliability Multi-WAN Routing, Site to Site VPN, Regional Internet Drop-off
Capacity
SD-WAN Client Capacity Up to 250 clients, typical loading 150
Native: 700 Mbps
Tunneled, QoS Disabled: 550 Mbps
Tunneled, QoS Enabled: 400 Mbps
SD-WAN Hub Capacity 25 Edge Systems, 50 Tunnels, 20k Flows
Tunneled, QoS Disabled: 500 Mbps
Tunneled, QoS Enabled: 300 Mbps
Specifications
Ethernet Ports 6x 1.0 GbE RJ45 switchable LAN/WAN
Expansion Ports 4x USB3
Processor i3-7020U 2.30GHz, 2 core / 4 threads
Memory / Storage 8GB DDR4 / 120 GB SSD
Physical
Enclosure Standalone, VESA mount, fanless
Measurements 6.1” x 5” x 2.1” [155 x 127 x 53 mm]
Environment -10°C to +50°C, ≤ 95% RH non-condensing
Power +12VDC (50W Max)
Regulatory
Certifications CE, FCC, Anatel (Brazil)
Warranty 1-year limited, extended warranty available
